Solid Wood CNC cutting machine
  • Solid Wood CNC cutting machine
  • Solid Wood CNC cutting machine
  • Solid Wood CNC cutting machine
  • Solid Wood CNC cutting machine

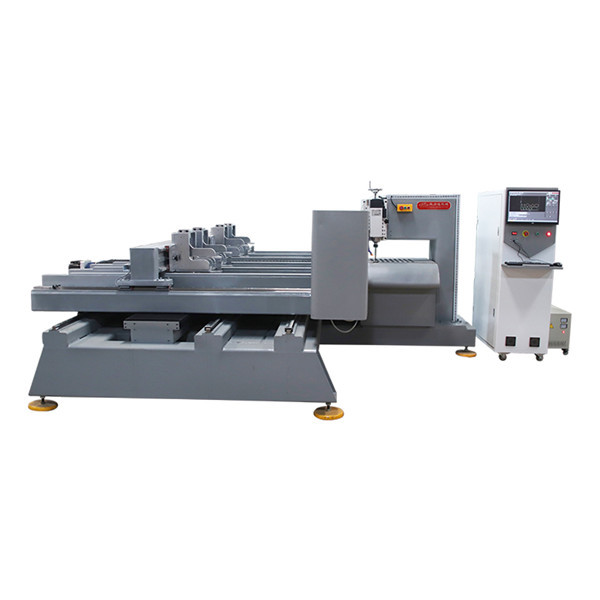

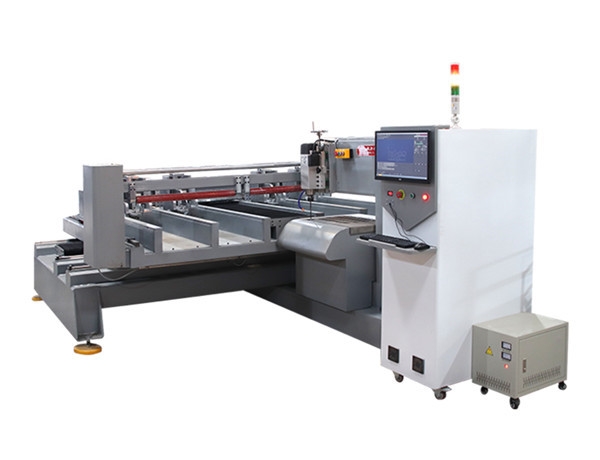

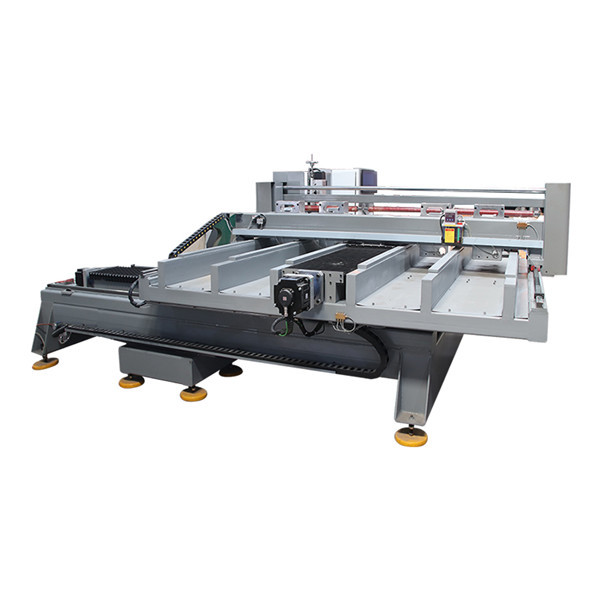

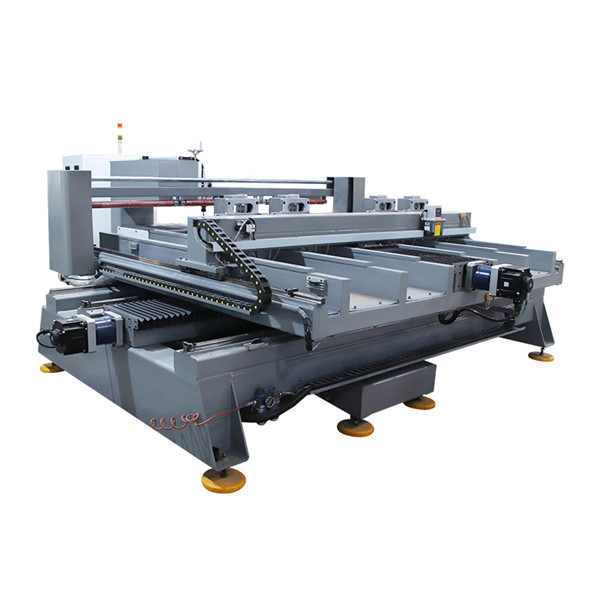

Solid Wood CNC cutting machine
Hot-line:+86 18100289685 中文版
E-mail:info@szzldjx.com Inquiry
MAIN FEATURES

The solid wood CNC blanking machine is CNC automatic equipment used for special-shaped cutting of solid wood plates.The milling cutter rotates the plate at high speed to form a single process. The section is smooth ,the processing accuracy is high, and the speed is fast; It can replace the traditional wire saw cutting operation, The equipment adopts pneumatic clamping and automatic feeding ,and the operation is simple and practical . It is suitable for all solid wood furniture factories.

Model ZLD013A-6 ZLD013A-6A ZLD013A-6B ZLD013A-6C with drilling
Maximum Processing 0-150mm 0-150mm 0-150mm 0-150mm
Maximum processing size 1300*1300mm 2000*1300mm 2500*1300mm 2500*1300mm
Max speed of processing speed 0-10M/min 0-10m/min 0-10M/min 0-10M/min
Voltage 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Spindle Power 16.5KW 16.5KW 16.5KW 16.5KW
Dimensions 3100*2300*1600mm 3100*2800*1600 3100*3300*1600mm 3100*3300*1600mm
Weight 2000kg 2500kg 3000kg 3500kg
